Panel dividing saws SAWTEQ S-210 lifiting table
Panel dividing saws SAWTEQ S-210 lifiting table
The right saw for cutting panels horizontally in the crafts sector: attractively priced, efficient and upgradeable.
Equipped with an integrated lifting table, the SAWTEQ S-210 can also be fed from the rear — controlled by the program and in line with the saw cycle. This is significantly more ergonomic, faster and more efficient than feeding solely manually from the front. The flexibility is that this saw allows you to use both feed variants equally — depending on the job.
Highlights
The Power Concept Advanced (optional) allows two strips with different cross cut divisions to be cut together. For a productivity increase of up to 40%.
The easy-to-use Power-Loc quick-release system speeds up blade changes on both main and scoring saw.
The start-stop bar on the first air cushion table (option) enables a convenient program start, even when handling large planels or strips.
Images
-
![]()
Cut-out option for simple creation of cut-outs, much easier handling than on a slidingtable saw (option). -
![]()
Manually operated trim stops: for precise positioning and safe processing of sensitive materials (option). -
![]()
Pneumatically operated trim stops: for precise positioning and safe processing of sensitive materials (option). -
![]()
Grooving using the panel dividing saw saves time, is easy to perform and is even suitable for insertion grooves and rear wall grooves (optional). -
![]()
Custom-designed labels for parts identification: for automatic program selection on downstream machines (option). -
![]()
The postforming unit ensures a chip-free cut for softforming and postforming panels (option). -
![]()
The stress-elimination cut releases the tension in the material, thus improving the dimensional accuracy (optional). -
![]()
The Power Concept Advanced boosts output by up to 40 %, significantly shortens work cycles and reduces unit costs (option).
Features
-
Open for simple storage control connection
-
Manual pressure regulation of clamps and pressure beams for cutting pressure-sensitive panels using two manual controls in the front operating area
-
Electric scoring saw adjustment: Precise and easy to control via the CADmatic saw control system
Technical Data
| Saw blade projection [mm] | 65 (80 or 95 as option) |
| Cutting length [mm] | 3,200 / 3,800 / 4,300 |
| Program fence speed [m/min] | up to 80 |
| Saw carriage speed [m/min] | up to 80 (up to 120 as option) |
| Main saw motor [kW] | 7.5 (9.2, 11 or 18 as option) |
| Monitor | 24" full-HD multi-touch display |
| Operating software | CADmatic 5 |
(Previous product name: SAWTEQ B-210 with lifiting table)
Software
-
![]()

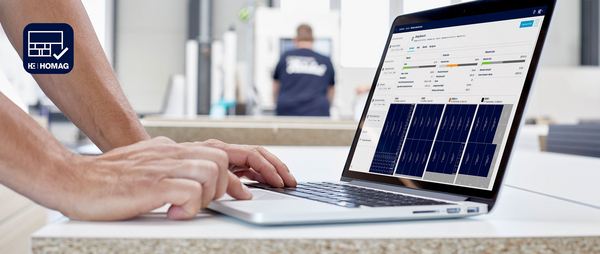

intelliDivide Cutting
Optimization software for cutting processes on saws
Optimization of cutting plans with just a few clicks
Simultaneous calculation of multiple solutions
-
![]()
CADmatic 5
Simple, intuitive and ergonomic machine operation thanks to the 3D assistance graphic
quickTip—the assistance function for optimal machine settings—proactively makes setting recommendations
Reproduce parts easily, reliably and using a transparent process with the reproduction of parts option in CADmatic
Videos
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.
» Privacy Policy
Panel Dividing Saw SAWTEQ B-200
Immerse yourself in the world of cutting and get an overview of the appearance and functions of the Panel Dividing Saw SAWTEQ B-200 horizontal panel sizing saw.
Brochures
Product Comparison
Lifting table saws for cutting
|
|
|
| |
|---|---|---|---|---|
| SAWTEQ S-210 lifiting table | SAWTEQ S-310 | SAWTEQ S-410 lifiting table | SAWTEQ S-510 with lifting table | |
| Cutting length [mm] | 3,200 | 3,800 / 4,300 | 3,200 | 3,800 | 4,300 | 5,600 | 3,200 | 3,800 | 4,300 | 5,600 | 3,200 | 3,800 | 4,300 | 5,600 | 6,500 |
| Saw blade projection [mm] | 65 (optional 80 or 95) | 80 (optional 95) | 110 (optional 125) | 150 (optional 170) |
| Program fence speed [m/min] | up to 80 | up to 90 | up to 90 | up to 90 |
| Saw carriage speed [m/min] | up to 80 (optional up to 120) | up to150 (optional 170) | 150 (optional up to170) | up to 130 (optional 150) |
| Left handed machine possible | - | |||
| Details | Details | Details | Details |
