WEINMANN Carpentry machine BEAMTEQ B-660 (WBZ 160 powerSIX)

WEINMANN Carpentry Machines BEAMTEQ B-660

WEINMANN Carpentry Machines BEAMTEQ B-660

All six sides of a component in a single run

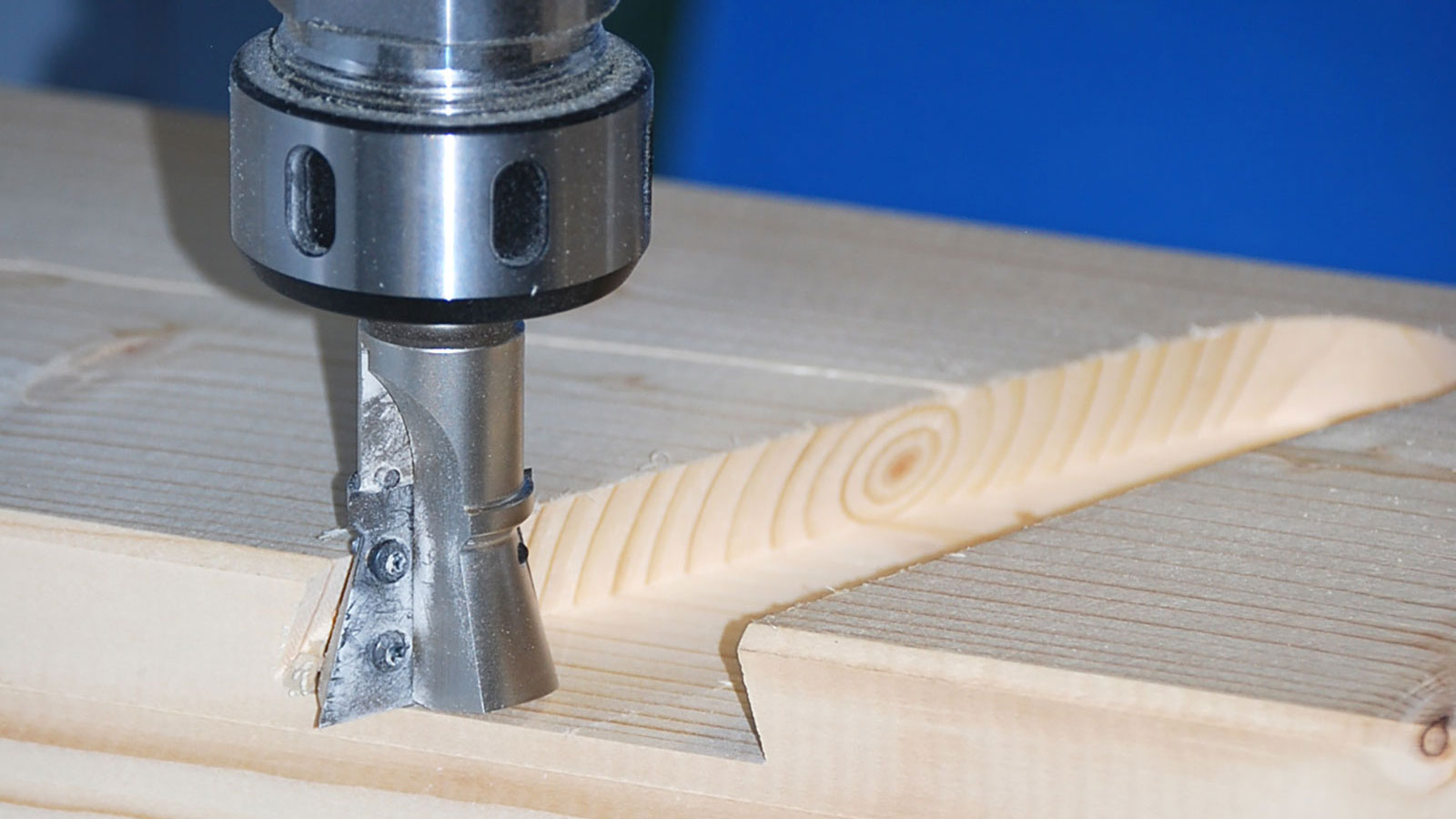

Benefitting from an underfloor unit, the BEAMTEQ B-660 from WEINMANN enables fully automated processing of all six sides of a component. Quickly and easily manufacture blocking grooves on rafters and dovetail connections on both sides of ridge beams.

Highlights

The underfloor unit enables fully automated processing of all six sides in a single throughfeed.

High level of flexibility thanks to the sawing unit and additional tool spindle including the automated tool changer for up to 12 tools. A FLEX5 processing unit and tool angle unit provide the option for complex processing, e.g. horizontal processing or miter cut processing.

Side milling cutter and trimmer or dovetail trimmer installed on the underfloor unit.

Images

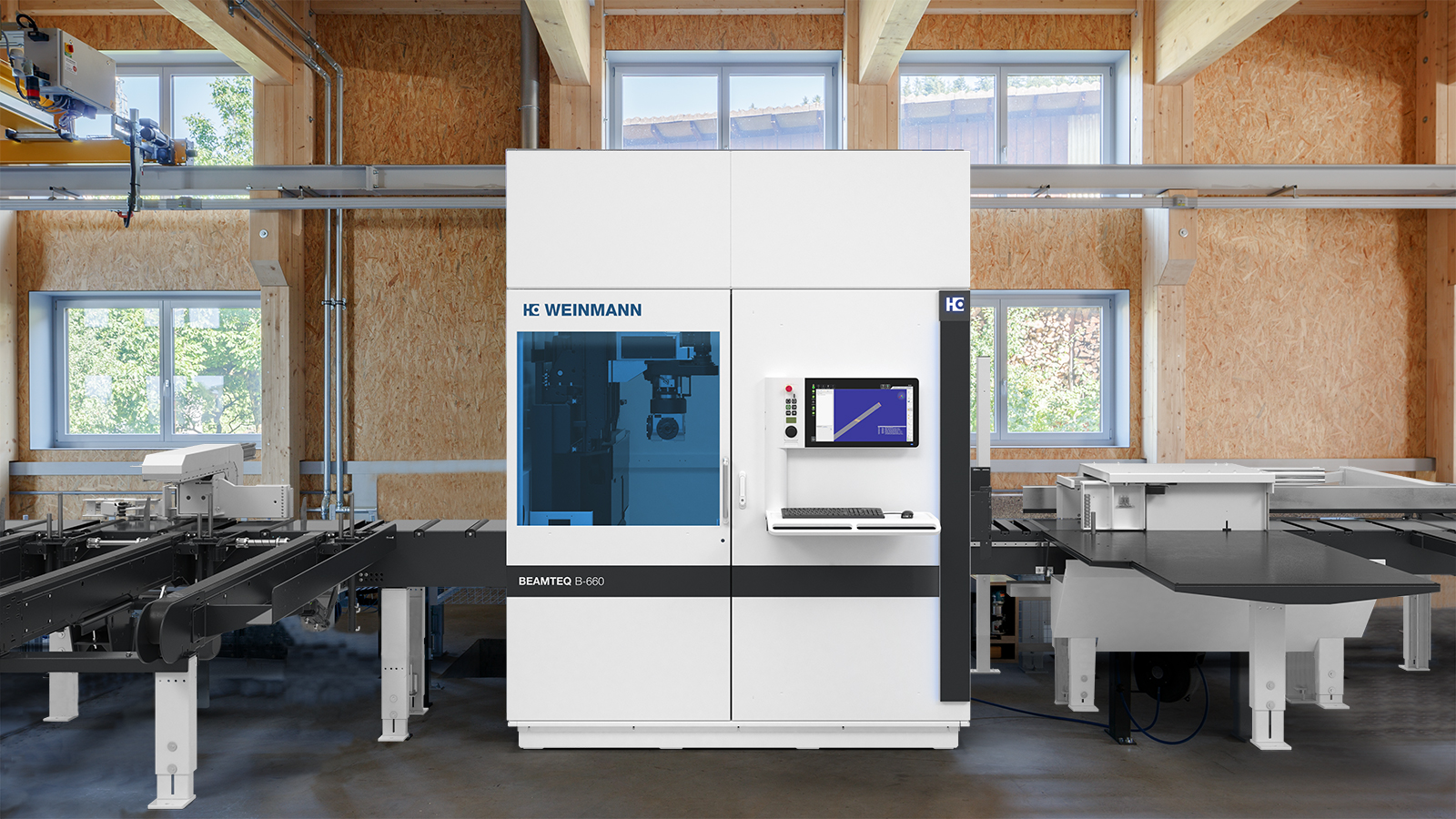

  • The carpentry machine can be optimal positioned in the production hall.

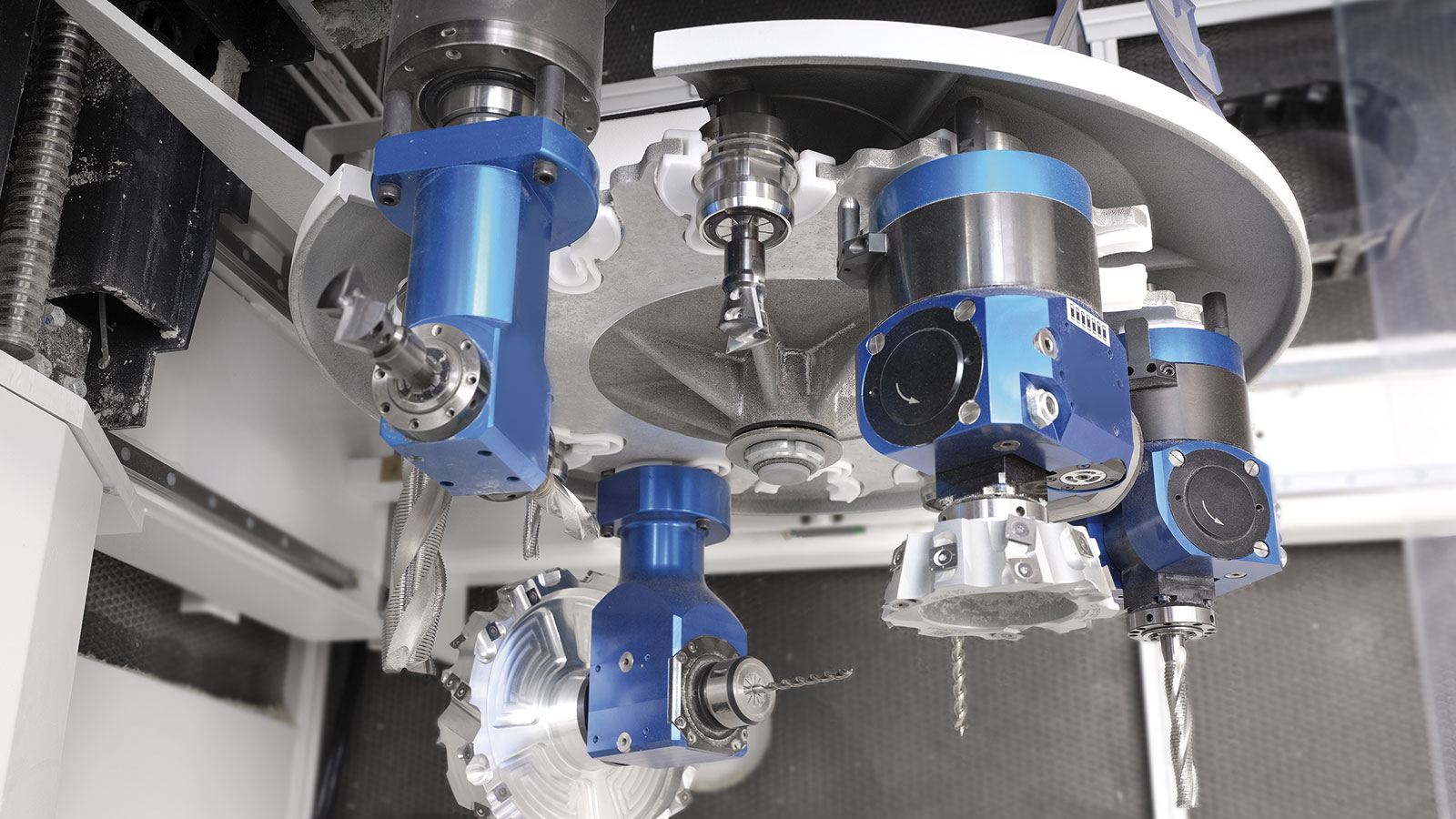

  • 12-fold tool changer can be individually equipped
  • Production of a groove
  • Labelling and marking with the ballpoint pen

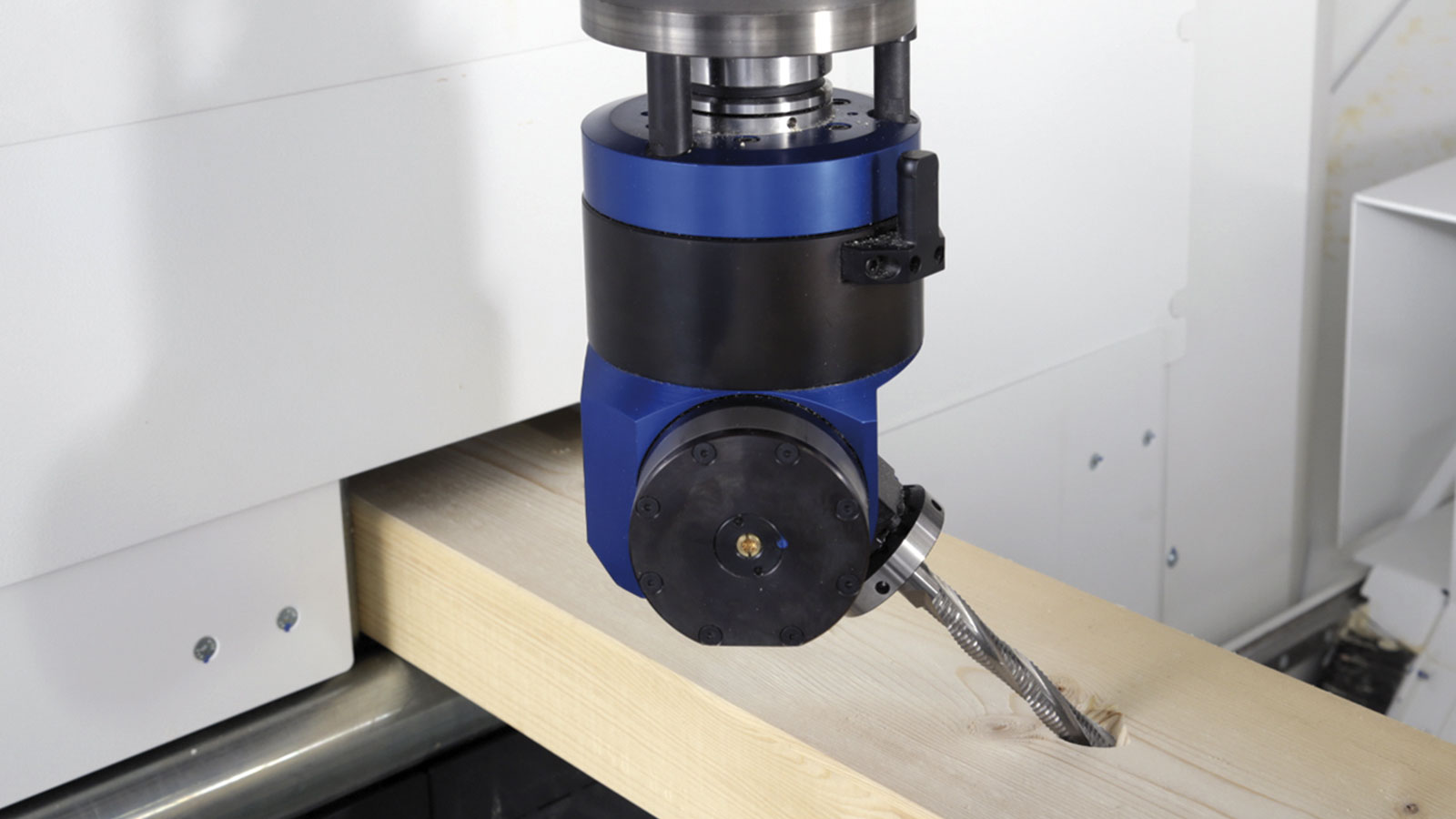

  • Production of hip rafter notch
  • Automatic removal for strands and off cuts removal by the Ascending conveyor

Features

  • The underfloor unit: Features a 6.6-kW side milling cutter plus a 7.5-kW drive unit for a finger trimmer, dovetail trimmer or drill

  • 12-slot tool changer and second integrated main spindles

  • 5-axis technology for trimming, sawing and drilling

  • Reduced noise and dust emissions thanks to the fully enclosed machine housing

  • FLEX5 sawing unit: A rotation angle of 0–360° in conjunction with a swivel angle of 0–90° allow you to process angled cuts, notches, rafter assembly cuts and rip cuts

  • High level of processing accuracy thanks to the NC gripper system combined with vertical and horizontal clamps

Technical Data

Min. cross-section [mm]min. 20 x 50
max. 200 x 455
Unprocessed timber length [mm]min. 1,500
Unprocessed timber length with intervention [m]max. 16.5

All technical data are without engagement!

(Previous product name: Carpentry Machine WBZ 160 powerSIX)

Software

  • MMR Office

    • The software for analyzing your machine data

    Read more

  • wupEditor

    • Import of .wup files from external CAD systems.

    • Intuitive processing options for wup files for smooth production without an external CAD system.

    • Application for the machine and the office workplace.

    Read more

  • WupWorks3

    • Data generation for wall, roof and ceiling production

    Read more

  • wupWorks 4

    • Intuitive machine control unit of the BEAMTEQ & STORETEQ series.

    • Clear 3D representation of workpieces and processing steps.

    • Import of .wup and .btl files from external CAD systems.

    Read more

Here's how your colleagues produce

Show more

Videos

Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.


» Privacy Policy

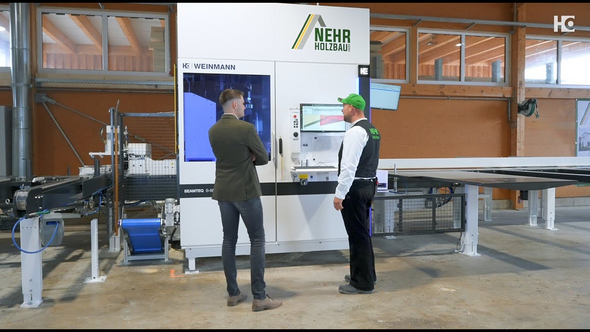

Master joiner: The latest generation of the BEAMTEQ B-660 at Nehr Holzbau

Nehr is delighted with its new BEAMTEQ B-660: It has a small footprint, works more precisely and faster thanks to the latest control technology and scores points with its improved chip extraction and much more.
