CNC Machining Centers CENTATEQ P-100
CNC Machining Centers CENTATEQ P-100
Speed and precision paired with user-friendliness and productivity
The CENTATEQ P-100 is a highly efficient, foundational range CNC processing center available to perform 3-/4- and 5-axis applications, machine processing length is 10 feet, can perform routing up to 1,600 mm in Y direction and a software optimized working field in all the variants. Its automatic tool changer and integrated tool management system optimize CNC operations and maximize output. With a strong focus on precision and durability, this machine is built to deliver top-notch results consistently. With its compact design and efficient features, the CENTATEQ P-100 is the perfect choice for small- to medium-sized cabinet furniture workshops.
Highlights
Everything is well stored and quickly accessible. Tool changers are the basis for flexible use. Either as a linear changer system (pictured) on the side, or traveling with the spindle.
High-speed drilling technology for precise drilling. One of four possible drilling gears for individual machining. Drilling gear V8/H6GX with eight vertical drilling spindles, four horizontal drilling spindles in X direction, two horizontal drilling spindles in Y direction and a grooving saw Ø 100 mm in X direction.
Images
-
![]()
3-/4-axis configuration with X working length 3,250 mm -
![]()
5-axis configuration with X-working length 3,100 mm -
![]()
8-fold tool changer -
![]()
3-/4-axis configuration with easy-to-position consoles – suitable for 50 mm high vacuum cups -
![]()
5-axis configuration with easy-to-position consoles – suitable for 100 mm high vacuum cups -
![]()
Operator safety is our top priority! Comprehensive safety concept consisting of safety fence and double light barrier.
Features
-
Suitable for 3-/4- and 5-axis applications
-
Versatile processing center with 4-field loading
-
Routing up to 1,600 mm in Y direction and a software optimized working field
-
Flexible and customizable for multiple configurations
-
Variable processing speed
-
Configurations with up to 31 drilling spindles and grooving saw
-
Quick and effortless positioning of the vacuum cups
-
Automatic spindle clamping system for precise depth
Technical Data
| 3-/4-axis | 5-axis | |||||
| X | Y | Z | X | Y | Z | |
| Working field (XYZ) [mm] | 3,250 | 1,600 | 100 | 3,100 | 1,600 | 150 |
| Routing (Ø=25 mm) (XYZ) [mm] | 3,250 | 1,600 | 100 | 3,100 | 1,600 | 150 |
| Drilling [mm] | 3,250 | 1,355 | - | 3,100 | 1,285 | - |
| 3-/4-axis | 5-axis | |||||
| Machine dimensions | Length | Width | Height | Length | Width | Height |
| [mm] | 6,569 | 4,852 | 2,543 | 6,820 | 5,018 | 2,543 |
Software
Here's how your colleagues produce
Videos
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.
» Privacy Policy

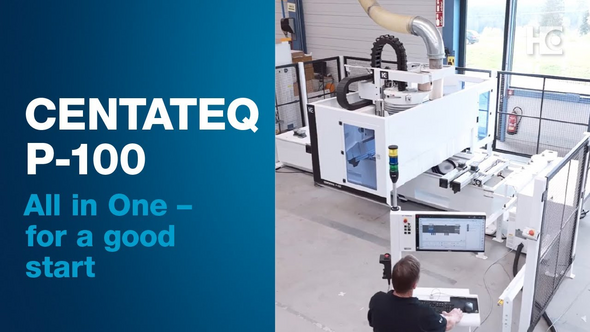

CNC processing center CENTATEQ P-100
With its compact design and efficient functions, the CENTATEQ P-100 is the perfect choice for small to medium-sized furniture workshops.
-
![]()
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.

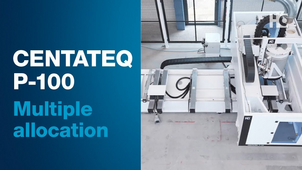

» Privacy PolicyCNC-Processing center CENTATEQ P-100 | Multiple use 2-field panel processing
With its compact design and efficient functions, the CENTATEQ P-100 is the perfect choice for small to medium-sized furniture workshops.
-
![]()
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.

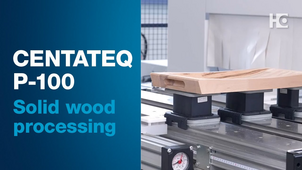

» Privacy PolicyCNC-Processing center CENTATEQ P-100 | Solid wood processing
With its compact design and efficient functions, the CENTATEQ P-100 is the perfect choice for small to medium-sized furniture workshops.
-
![]()
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.

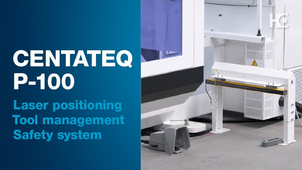

» Privacy PolicyCNC-Processing center CENTATEQ P-100 | Laser positioning, tool management, safety system
With its compact design and efficient functions, the CENTATEQ P-100 is the perfect choice for small to medium-sized furniture workshops.
Brochures
Product Comparison
CENTATEQ CNC- processing centers
|
|
|
|
| |
|---|---|---|---|---|---|
| CENTATEQ P-100 | CENTATEQ P-110 | CENTATEQ P-210 | CENTATEQ P-310 | E-310 | CENTATEQ P-510|610 + E-510 | |
| Working field (length + width) [mm] | up to 3,250 / 1,600 | up to 6,000 / 1,550 | up to 6,000 / 1,600 | up to 6,000 / 1,900 | up to 7,400 / 3,250 |
| Working height (Z from console / table) [mm] | 150 / 250 | 240 / 260 | 280 | 300 | 500 |
| Spindle power max. [kw] | 13,2 | 13,2 | 18,5 | 18,5 | 18,5 |
| Maximum tool changing slots | 18 | 34 | 42 | 50 | 126 |
| Table versions | Console table 1-circuit vacuum system | Console table 1-circuit vacuum system Aluminum grid table | Console table 2-circuit vacuum system Aluminum grid table Console table A-Flex | Console table 2-circuit vacuum system Aluminum grid table Console table A-Flex Console table AP | Console table 2-circuit vacuum system Aluminum grid table Console table A-Flex Console table AP |
| Safety technology | Light barrier | Bumper 360° free + comfort scanner | Bumper + comfort scanner + safety scanner speedpack | Bumper + comfort scanner + safety scanner speedpack | Bumper + comfort scanner + safety scanner speedpack |
| Edge banding technology | - | - | easyEdge | powerEdge pro Duo | powerEdge pro Duo powerEdge pro Duo Inclined edge |
| Details | Details | Details | Details | Details |
