WEINMANN Assembly Tables BUILDTEQ A-100
WEINMANN Assembly Tables BUILDTEQ A-100
We Provide the Technology, You Build the Table
Assembly table as a flat-pack solution: We provide you with assembly instructions that you can use to easily build the table yourself. The BUILDTEQ A-100 from WEINMANN provides you with a universal tool for producing timber frame walls, roof and floor elements and also frame walls.
Highlights
Future-proof: Can be expanded to include a carpentry table or a compact system, for example.
Attractive cost benefits: The assembly instructions and technology from WEINMANN enable you to set up the table yourself quickly and easily.
Universal entry-level solution: Gable, roof, floor, wall and special elements can be produced easily using the self-assembly table.
Images
-
![]()

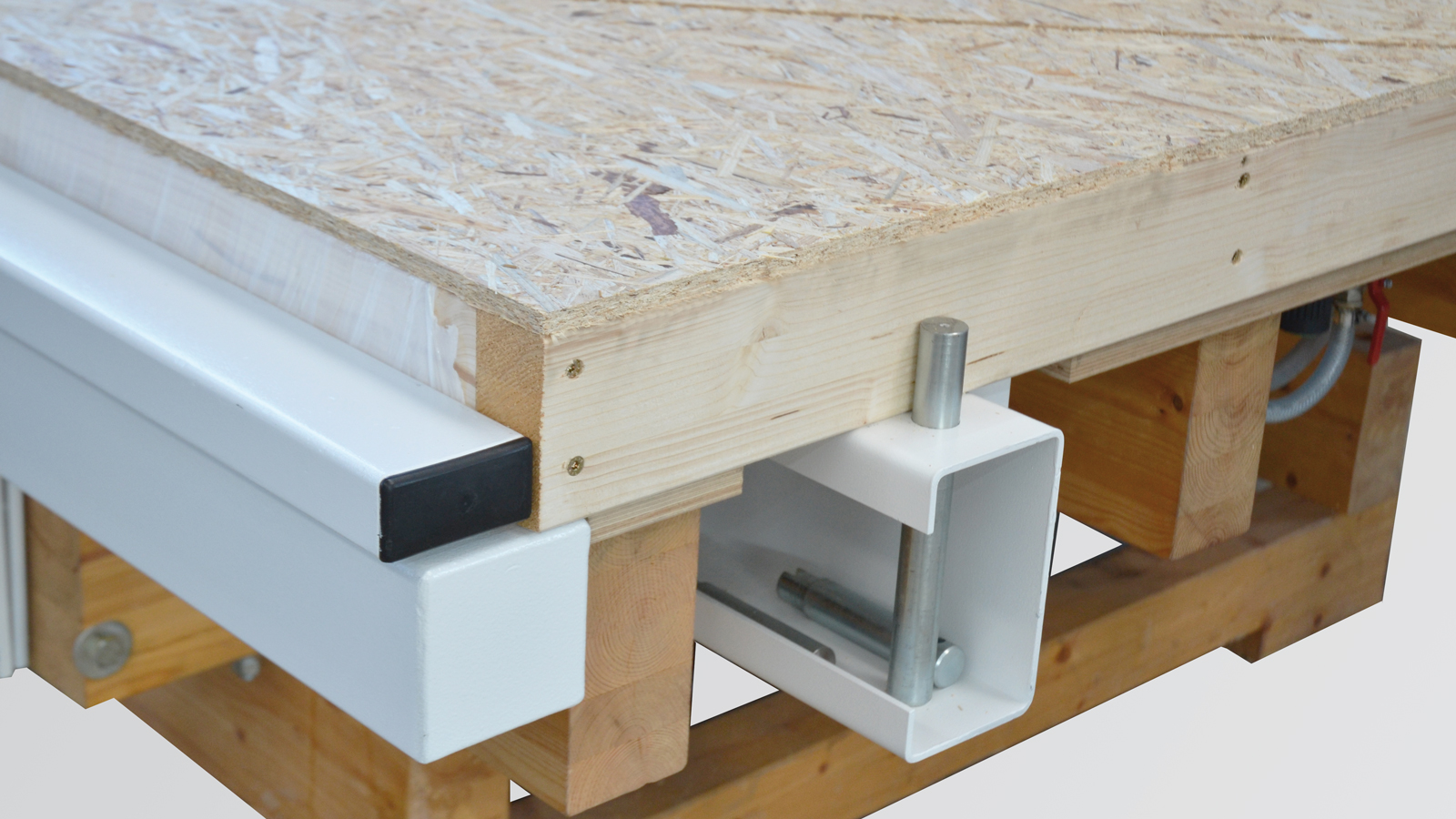

Angled stop system enables the correct alignment of the elements at the stop. -
![]()

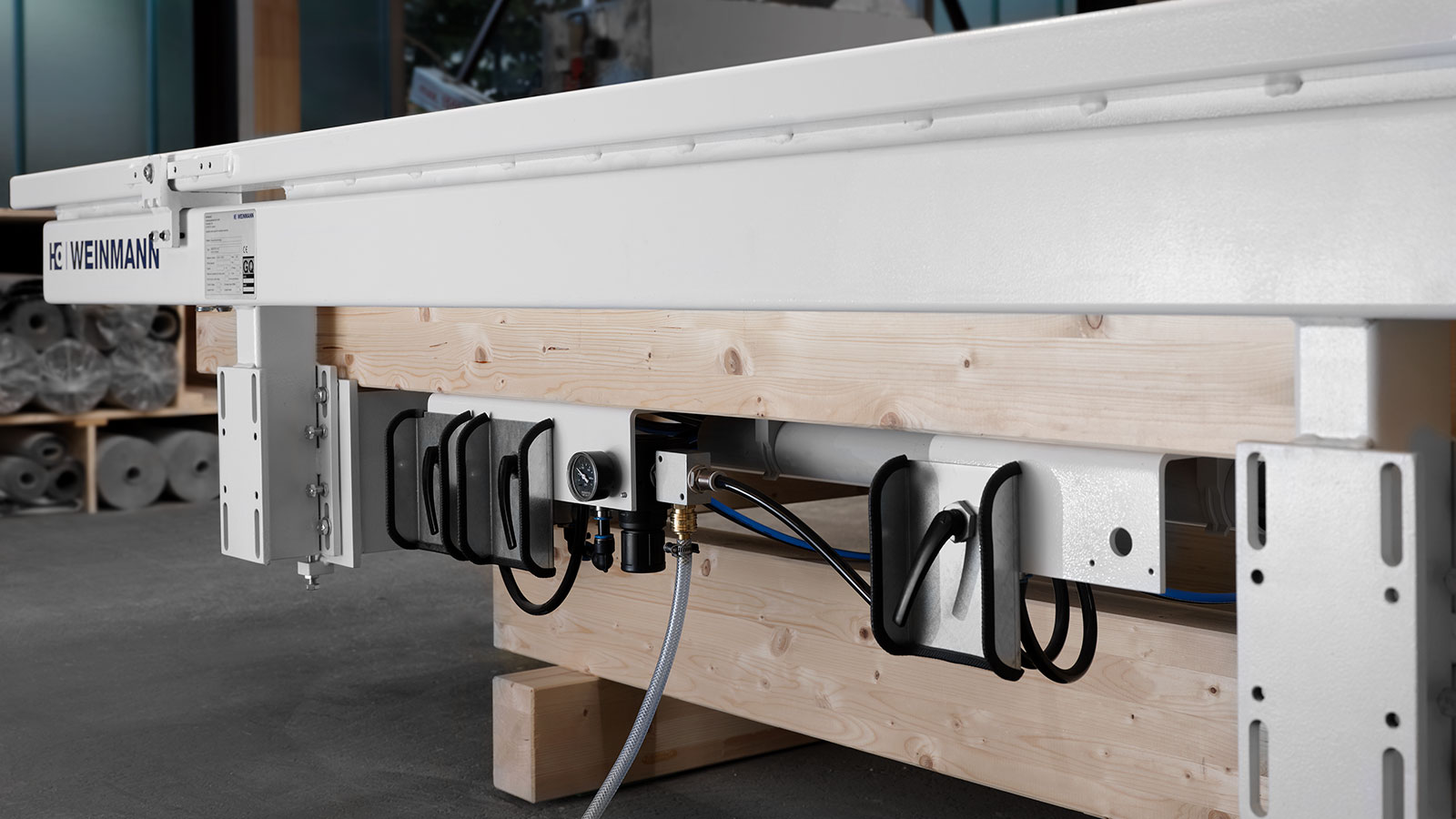

central air supply with pneumatic set -
![]()
Option: roof/ ceiling clamping units -
![]()

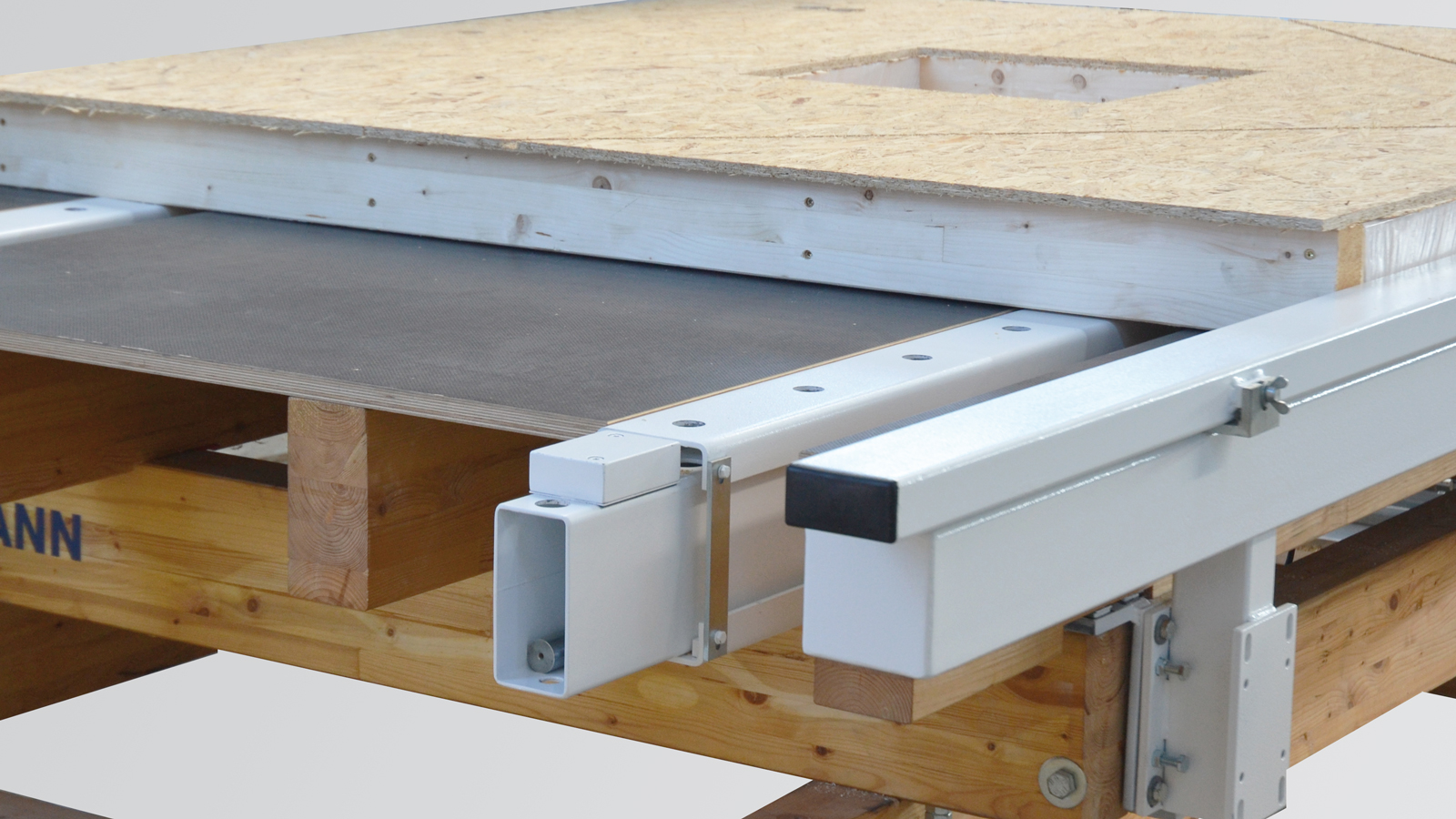

C-PowerTec clamping beams for fast and easy clamping of the frame work.
Features
-
High level of dimensional accuracy thanks to the angular stop system
-
Single clamping with C-PowerTec clamping beams, so that the straps always lie exactly on the stems
-
Option: Roof and ceiling clamp for easy production of roof and ceiling elements
-
The table is available in lengths of 6, 8, 10 and 12 m
Technical Data
| Processing height | customized |
| Clamping range [mm] | 3.800 |
| Element length min [m] | 1.5 |
| Element lenght max [m] | 12 |
| Element weight [t] | appx. 3.5 |
All technical data are without engagement!
(Previous product name: VarioTec Self Assembly Table WTV 100)
