Robot Solutions for the Furniture Industry PAQBOT I-300
Robot Solutions for the Furniture Industry PAQBOT I-300
Insert station with robot for automatic filling of cardboard-boxes
The safe robot handling works with a very high repeatability on continuous speed - and that space saving. Where elsewhere employees lay workpieces into passing cardboards at a transport distance in monotonous movements, here, the insert station PAQBOT I-300 plays its full strength. The perfect solution for anyone who packs furniture parts.
Images
-
![]()

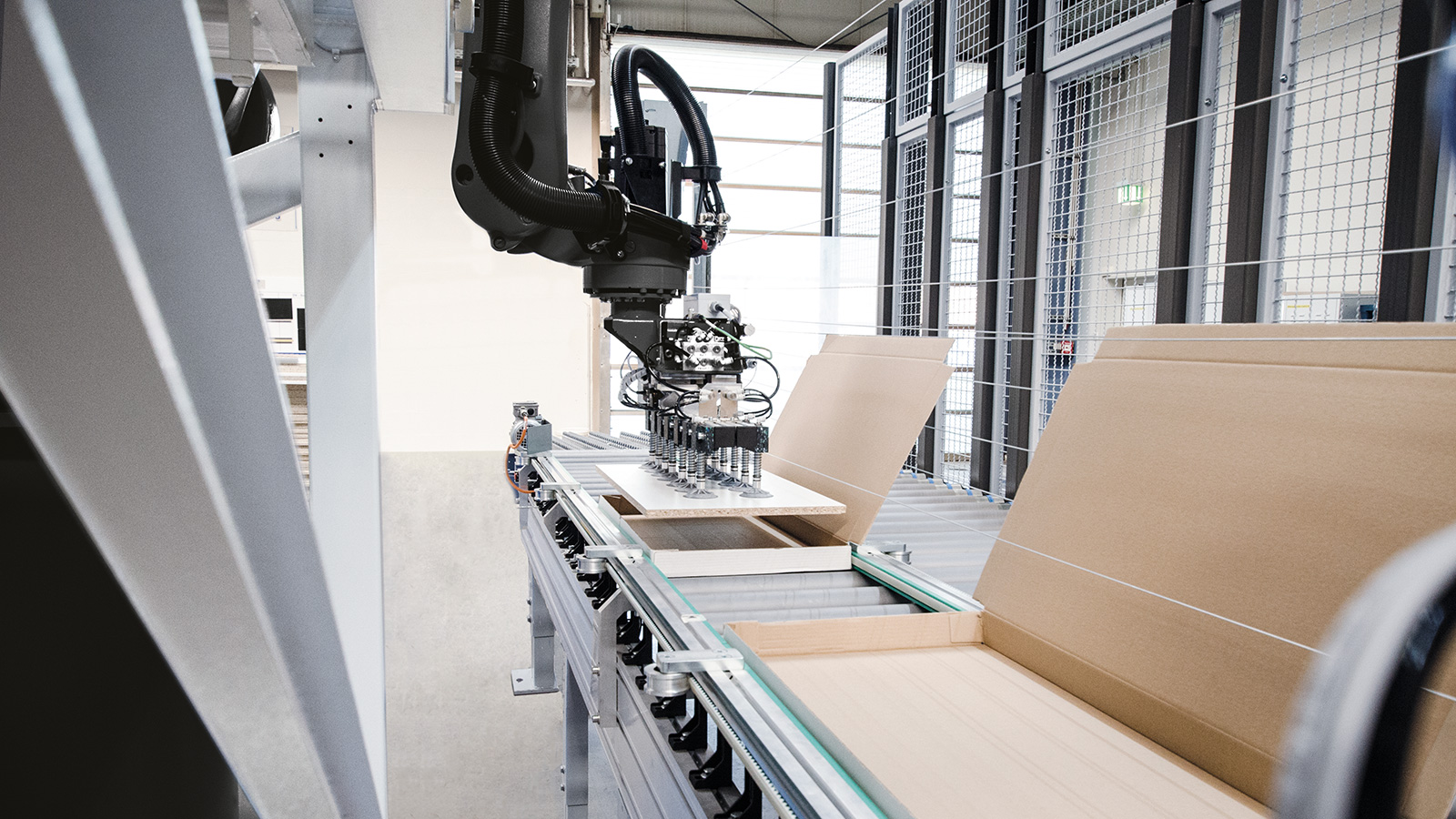

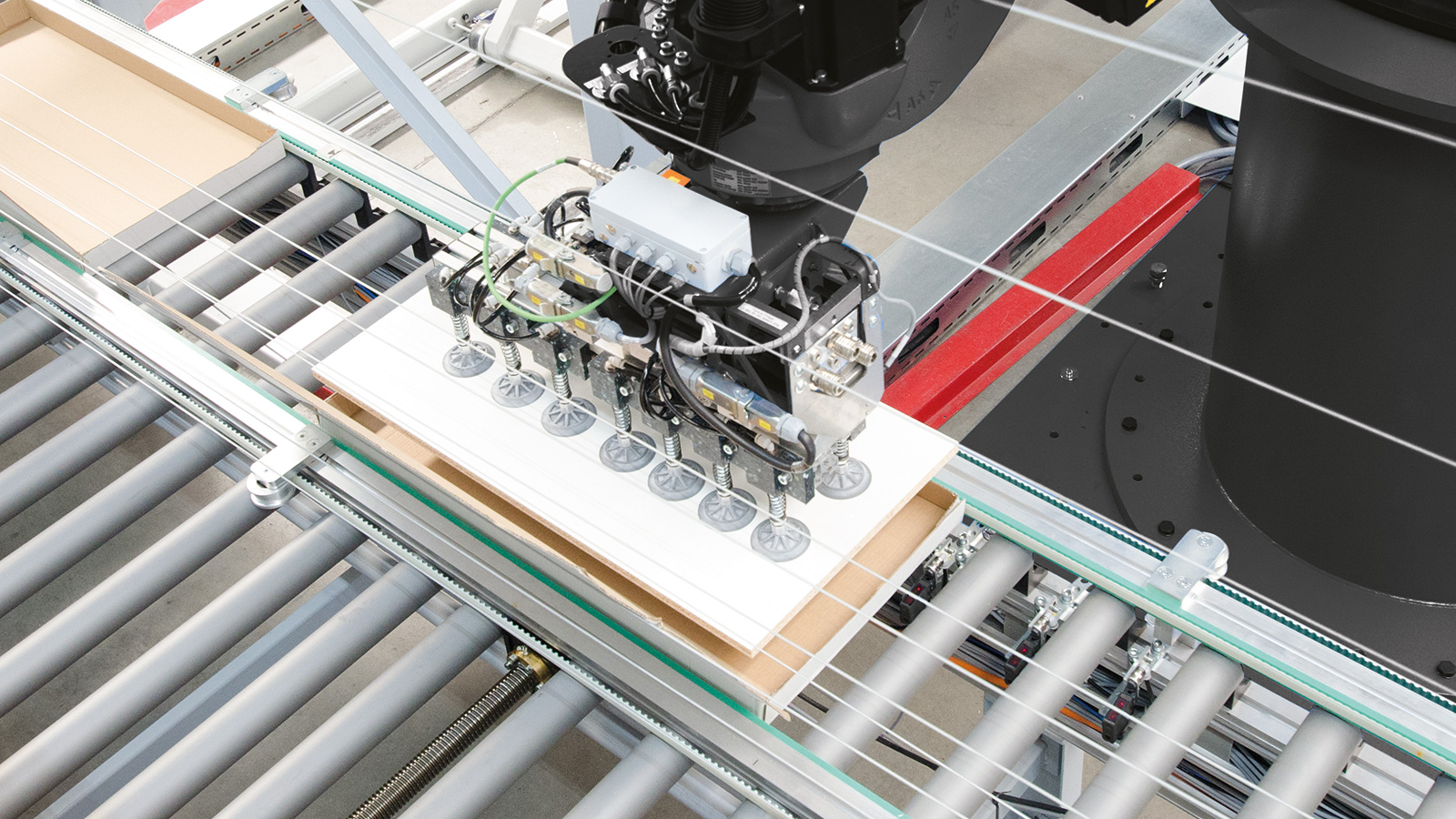

Automatic insertion of individual parts into cardboard-boxes. -
![]()
The insert station adapts to the speed with which the cardboards pass the insert area of
the robot.
Features
-
Insertion of individual parts into carton with up to 10 cycles
-
Almost identical repeating accuracy
-
Sensor system reports exact position of the carton to the robot
-
No pit needed
Technical Data
| Box dimensions (inside) | Workpiece dimensions | Stack dimensions | |
|---|---|---|---|
| Length [mm] | 400 - 2,500 | 390 - 2,490 | 780 - 2,490 |
| Width [mm] | 210 - 1,100 | 200 - 1,090 | 400 - 1,100 |
| Hight [mm] | 32 - 250 | - | 600 - 1,600 incl. fundament |
| Thickness [mm] | - | 16 - 60 | - |
| Weight [kg] | - | max. 25 | - |
(Previous product name: Robotic Insert Station VRE 200)
